The OAKWORKS Medical CFPM100 is a professional C-arm imaging and interventional table with electric height adjustment, designed to support image-guided diagnostic and pain management procedures.
One of the model’s most important characteristics is its 56 cm minimum height — exceptionally low among the OAKWORKS imaging tables — which makes it easier for patients to get on and off safely, while the 102 cm maximum working height lets healthcare professionals work ergonomically.
This video loads from a third party
To show the video you need to accept embedded content, because loading it sends data to YouTube and the player may place cookies of its own. Until then you can open the video directly on YouTube.
Watch on YouTubeFor image-guided procedures

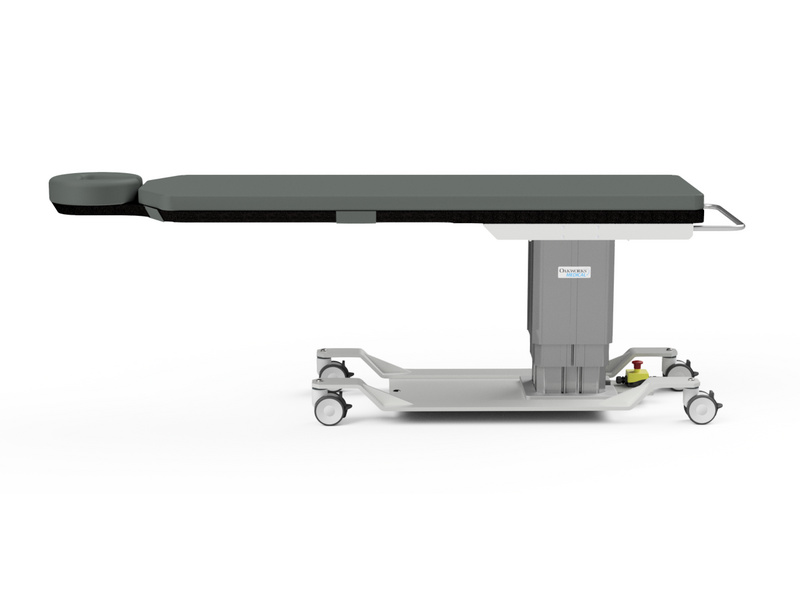

The integrated-headrest version of the CFPM100 has a carbon fibre table top measuring 56 × 214 cm. The large 56-inch — approximately 142 cm — metal-free imaging area gives the C-arm the access it needs and supports unobstructed imaging of the treatment area.
The design of the integrated headrest is particularly suited to prone patient positioning, and can be extended further with the optional positioning accessories.
Straightforward electric height adjustment
The CFPM100 has one electrically controlled movement function:
- Electric height adjustment: 56–102 cm
- Height is controlled with a foot control
- Maximum patient weight: 227 kg
This simple control offers a practical solution for applications that do not need Trendelenburg tilt or electric longitudinal and lateral travel, but where proper C-arm access and an electrically adjustable working height do matter.
Stable construction for interventional procedures
The large lifting column of the OAKWORKS imaging tables provides a high degree of rigidity and stability, supporting fast, accurate imaging and the stable patient positioning that interventional procedures require.
The 227 kg patient capacity makes the CFPM100 usable for a wide range of patients. Standard equipment includes lockable 10 cm castors; for mobile use, 13 cm castors can be ordered as an option.
Patient comfort and radiolucent design
The table has a 5 cm thick radiolucent Comfort Foam® pad, which serves patient comfort during examinations and procedures without obstructing imaging unnecessarily.
The integrated-headrest version comes with a Crescent face pillow and two patient safety straps. The upholstery is premium, PVC-free TerraTouch™ Medical Grade Fabric, certified to ISO 10993.
Patient positioning accessories
The CFPM100 can be extended with a range of optional accessories to support different interventional procedures and patient positions:
- Arm Hammock arm support for the prone position
- carbon fibre arm support that swings through 180°
- radiolucent Fluoro Extender
- Interventional Supine Pillow System for supine positioning
- Spine Positioning System II spinal positioning system
- adjustable T-rail mounting element
The radiolucent design and adjustability of the Spine Positioning System II support proper visualisation of the cervical, thoracic and lumbar spine, and help reduce unwanted patient movement.
