The OAKWORKS Medical CFPM400 is a professional C-arm imaging and interventional table with four electrically controlled movement functions, designed among other things to support image-guided pain management and other procedures.
The wide height adjustment range makes it easier for patients to get on and off the table safely, while allowing the physician to set an ergonomic working height. The large, rigid lifting column provides a high degree of stability during imaging and procedures.
This video loads from a third party
To show the video you need to accept embedded content, because loading it sends data to YouTube and the player may place cookies of its own. Until then you can open the video directly on YouTube.
Watch on YouTubePurpose-built for image-guided procedures

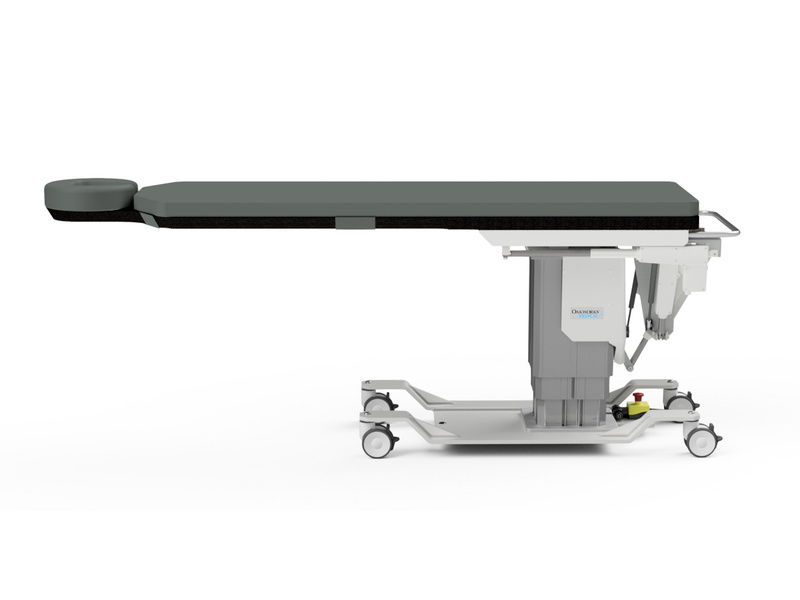

The CFPM400 has a carbon fibre table top measuring 56 cm wide and 214 cm long. Its 142 cm metal-free imaging area gives C-arm imaging equipment the access it needs.
The design of the integrated headrest and the wide range of positioning options support correct patient placement during a variety of interventional and imaging procedures.
Four electric movement functions
The CFPM400 has four electrically controlled movement functions:
- Electric height adjustment: 66–109 cm
- Trendelenburg / reverse Trendelenburg tilt: +15° / –11°
- Longitudinal travel: 25 cm
- Lateral tilt: ±15°
The movement functions are operated with a multifunction hand control, and a multifunction foot control is also available as an option.
Precise patient positioning
The ±15° lateral tilt, the Trendelenburg function and the longitudinal travel together allow the patient’s position to be fine-tuned without having to reposition them manually every time.
Precise positioning can be particularly advantageous during procedures where proper visualisation of the target area and optimal C-arm access matter.
Stable construction, high load capacity
The CFPM400 has a maximum patient capacity of 227 kg. OAKWORKS designed the large lifting column for a high degree of rigidity and stability, which gives a steady working surface during imaging and procedures.
Standard equipment includes lockable 10 cm castors; for mobile use, 13 cm castors can be chosen as an option.
Patient comfort and radiolucent design
Standard equipment includes the 5 cm thick radiolucent Comfort Foam® table pad, which supports patient comfort while remaining usable during imaging procedures.
A Crescent face pillow is supplied with the integrated headrest, and two patient safety straps are also part of the standard equipment.
The upholstery is PVC-free TerraTouch™ Medical Grade Fabric, certified to ISO 10993.
Accessories and configuration options
The CFPM400 can be extended with a range of optional patient positioning and interventional accessories, including:
- Arm Hammock arm support for use with the integrated headrest
- carbon fibre arm support that swings through 180°
- fluoroscopy extension
- Interventional Supine Pillow System for supine positioning
- Spine Positioning System II spinal positioning system
- T-rail mounting adapter
- multifunction foot control.
